System Dimensions

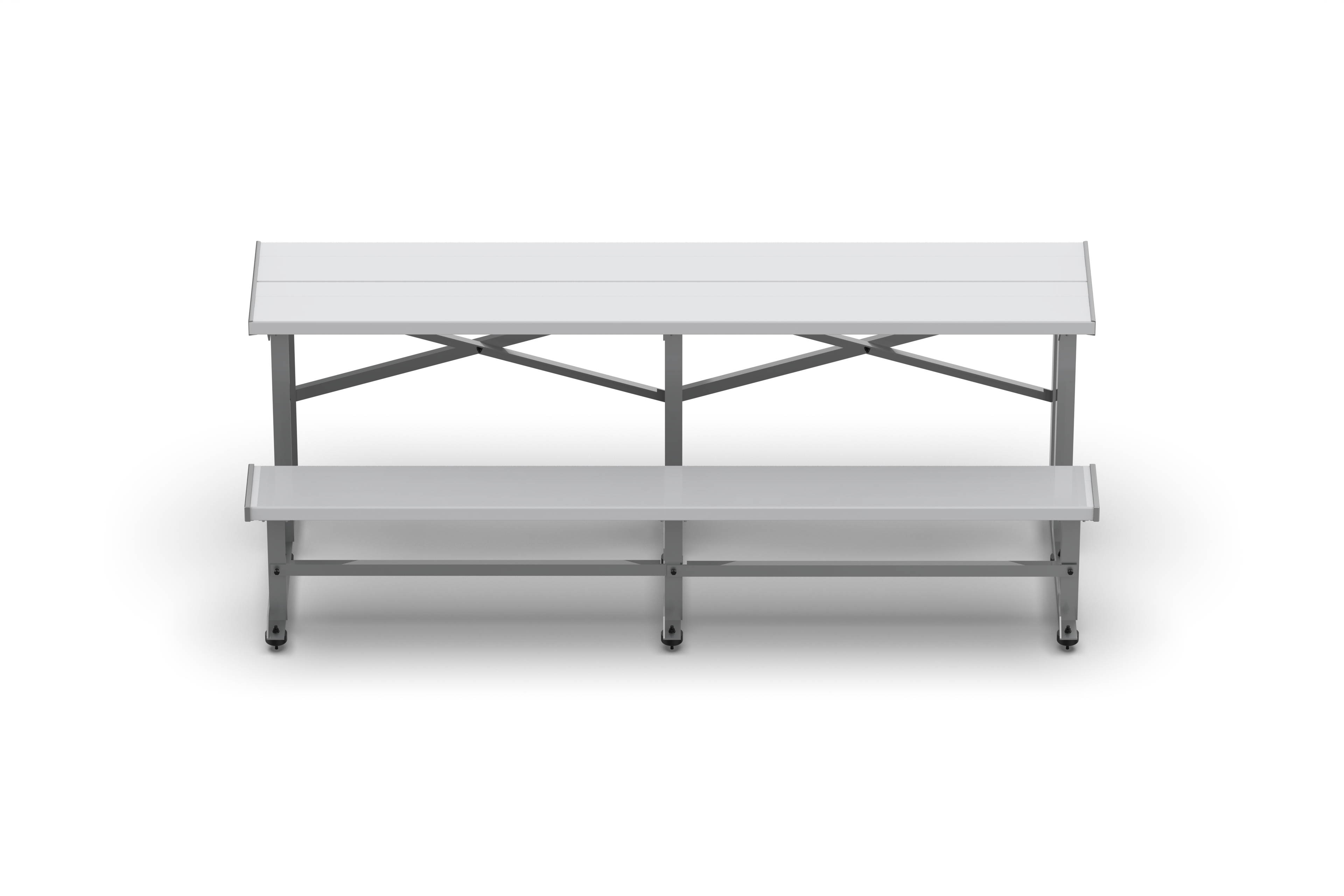

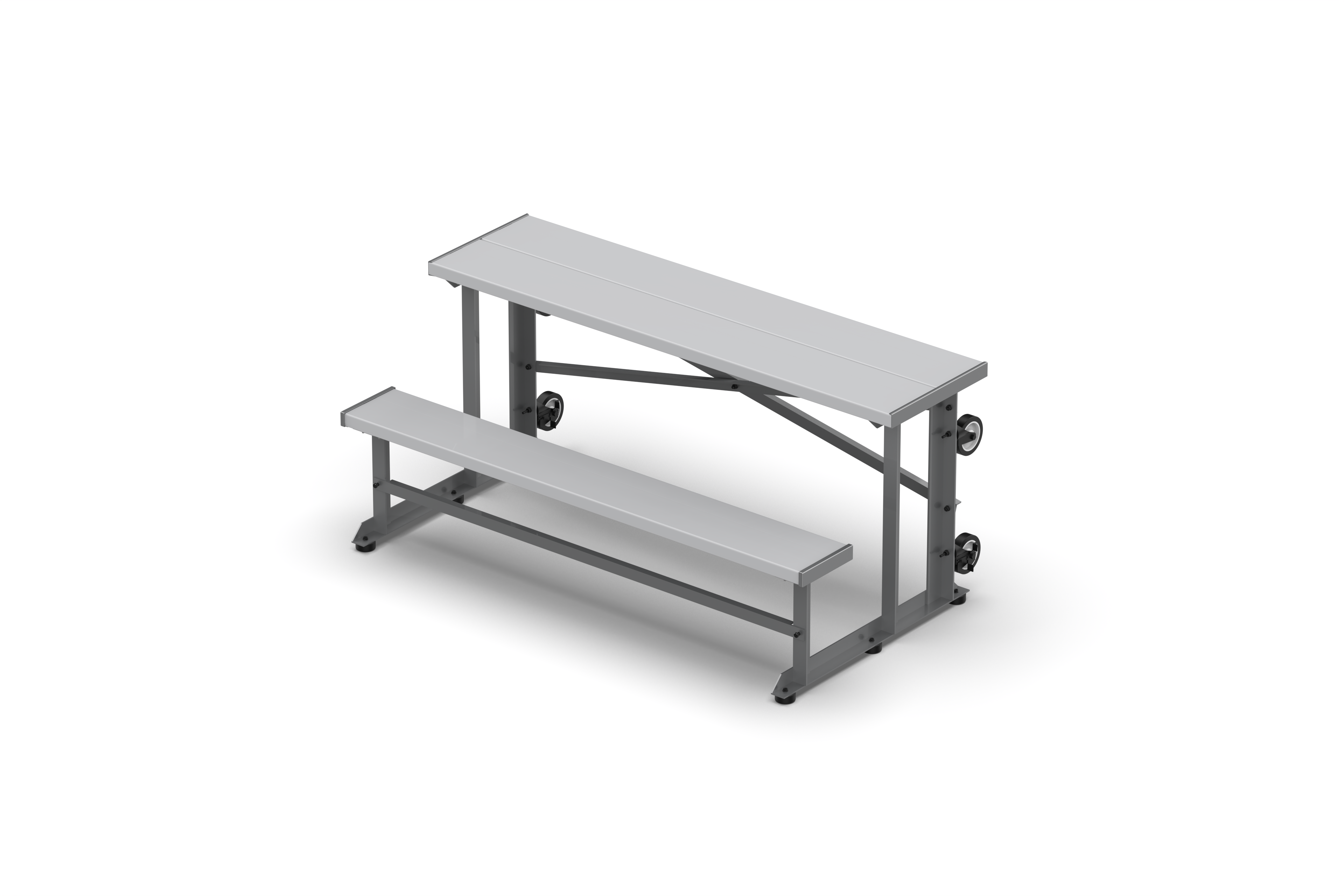

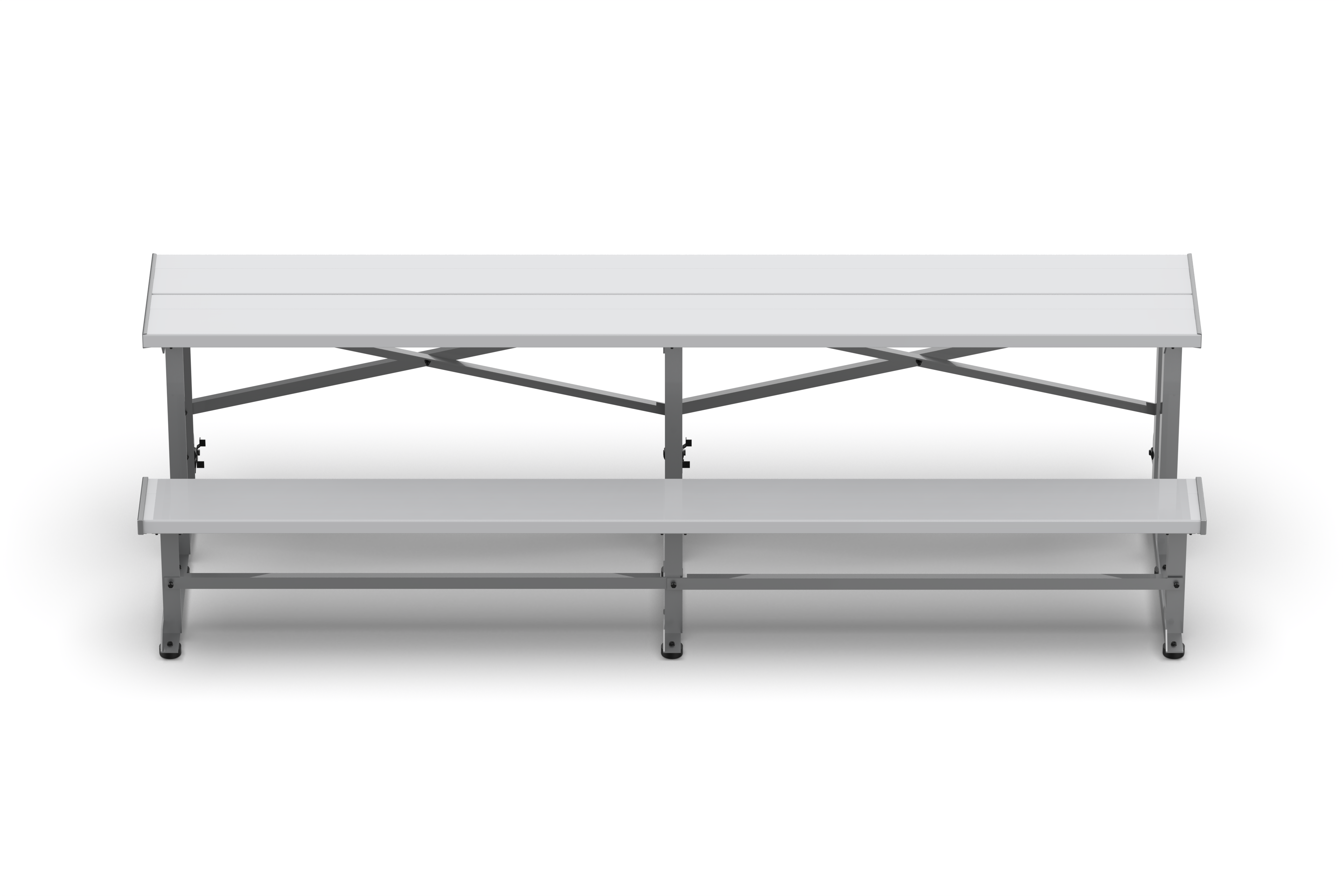

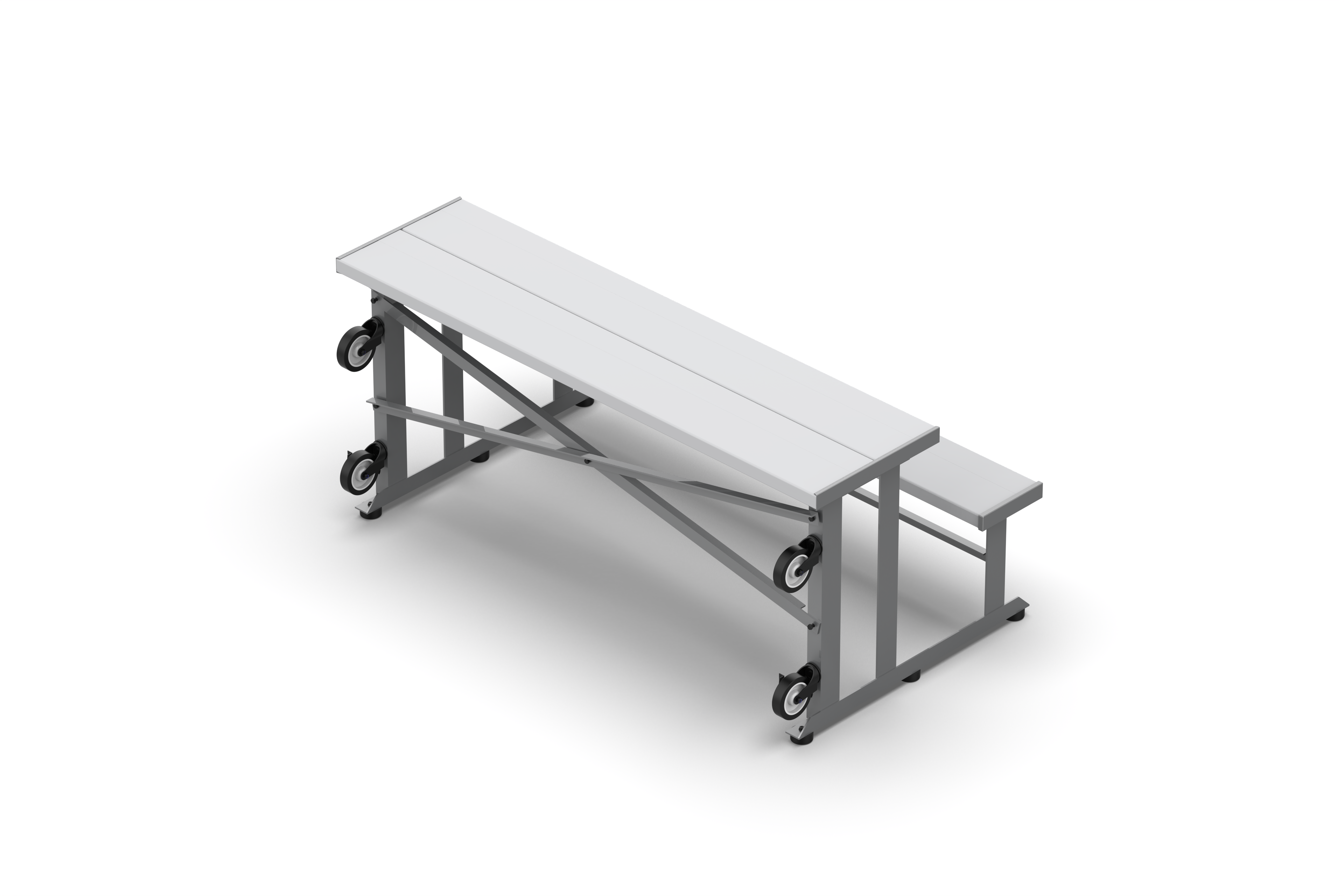

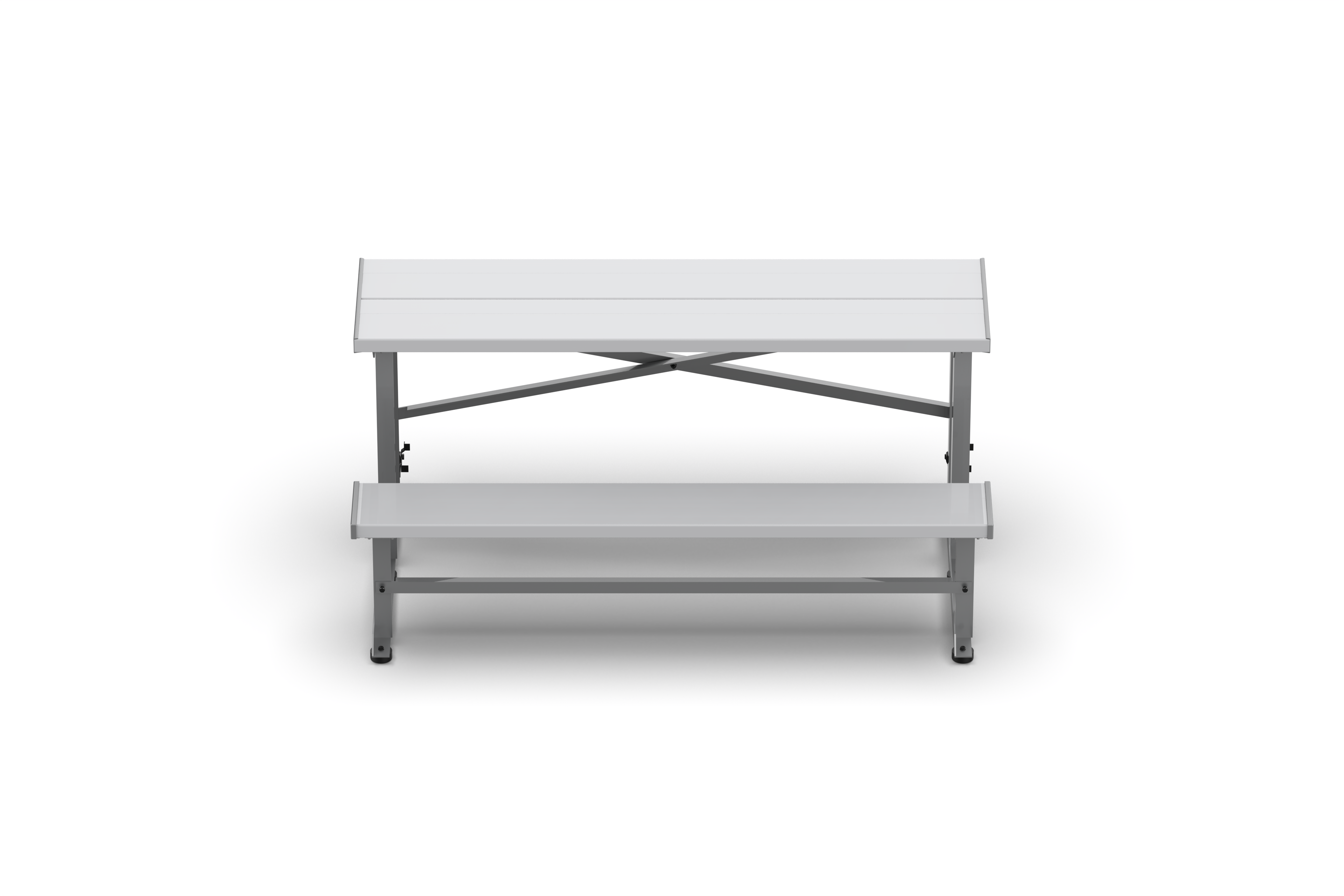

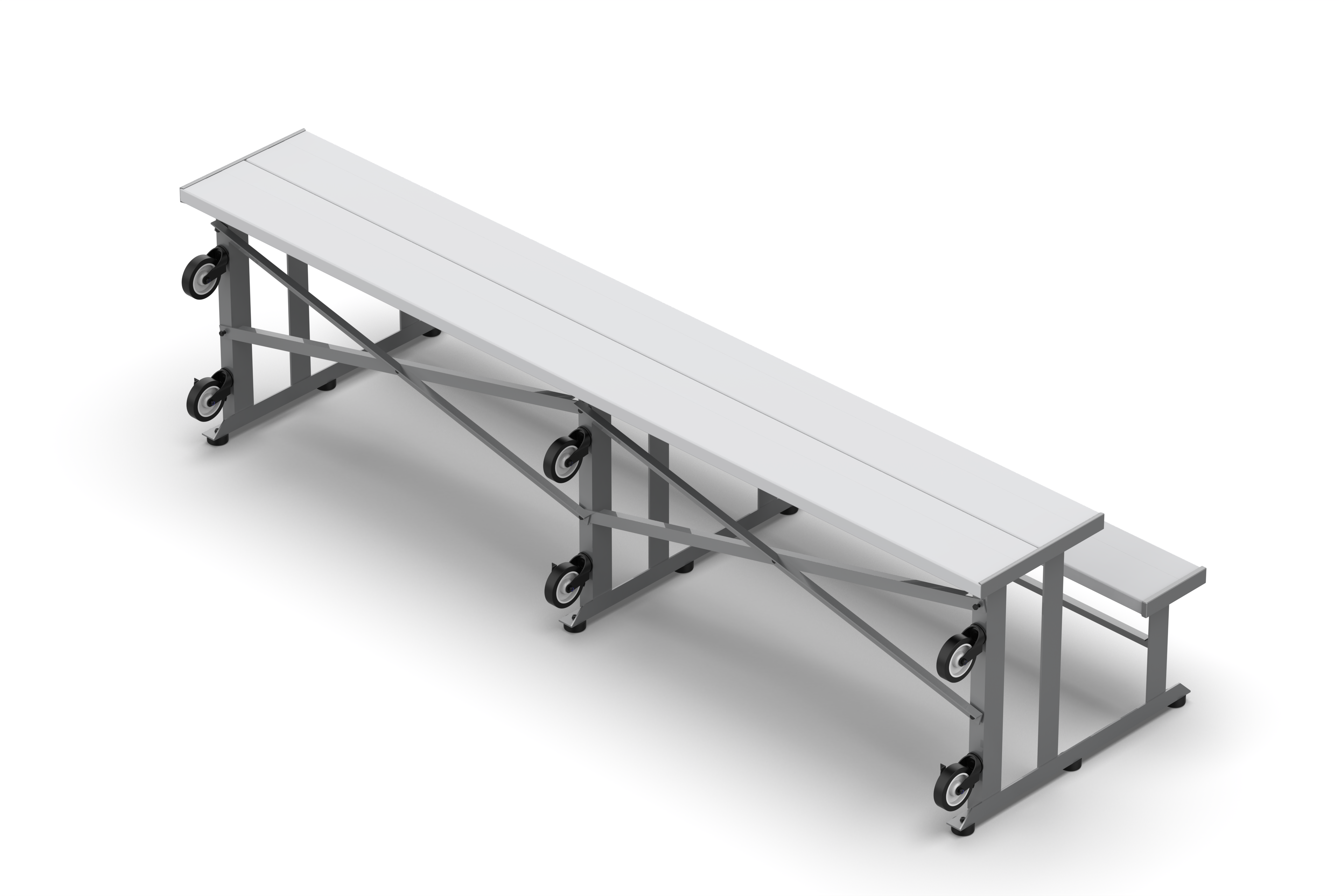

NON-ELEVATED BLEACHER DIMENSIONS
| Rows | A | B | Rows | A | B |
|---|---|---|---|---|---|
| Foot Print | Top Seat Height | Foot Print | Top Seat Height | ||
| 2 | 2'-1½" | 2'-1" | 8 | 14'-1½" | 6'-1" |
| 3 | 4'-1½" | 2'-4" | 10 | 18'-1½" | 7'-5" |
| 4 | 6'-1½" | 3'-5" | 13 | 24'-1½" | 9'-5" |
| 5 | 8'-1½" | 4'-1" | 15 | 28'-1½" | 10'-9 |
ELEVATED BLEACHER DIMENSIONS
| Rows | A | B | Rows | A | B |
|---|---|---|---|---|---|
| Foot Print | Top Seat Height | Foot Print | Top Seat Height | ||
| 3 | 10'- 0 ⅛" | 5'-8 ¾" | 10 | 24'- 0 ⅛" | 10'-4¾" |
| 4 | 12'- 0 ⅛" | 6'-4 ¾" | 13 | 30'- 0 ⅛" | 12'-4¾" |
| 5 | 14'- 0 ⅛" | 7'-0 ¾" | 15 | 34'- 0 ⅛" | 13'-8¾" |
| 8 | 20'- 0 ⅛" | 9'-0 ¾" |
